P.C.B Overview

- PCB

Printed Circuit Board

- Types of PCBs

RIGID PCB (R.P.C)

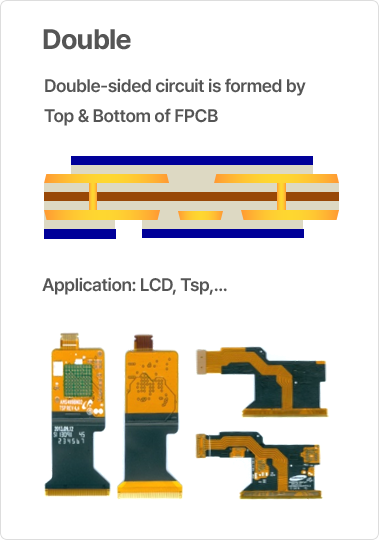

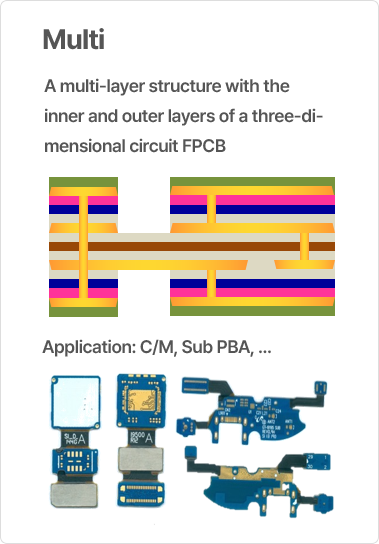

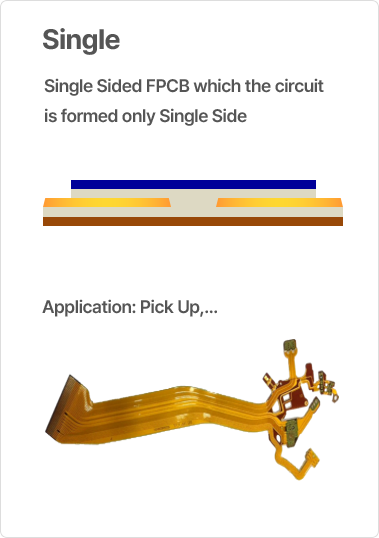

FLEXIBLE PCB (F.P.C)

What is FPCB?

- FPCB, Flexible Printed Circuit Board

FPCB is a three-dimensional wiring circuit board designed in the form of a thin and bendable film that has excellent heat resistance, bending resistance, and chemical resistance, and is easy to assemble due to minimalchange in dimensions.

Need for FPCB

The use of FPCB blocks the possibility of breaking of existing PCB cables that can occur when moved several times due to poor flexibility, so it can be used in narrow and complicated spaces. In addition, unlike PCB, which requires shouldering by connecting wires and cables at multiple points, in turn reducing the work speed significantly, FPCB can act as a conductor with one or two shouldering.

Fields of Application

· FPCB is a core component that is essential for all areas where electronic components are used, such as mobile phones, automobiles, medical devices, and applications for the military and aerospace industry. Its range of use is very wide and its demand continues to grow.

Introduction to the Process

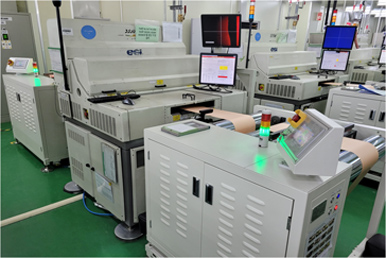

Drilling

A process of making holes for electrical connection between the inner and outer layers using a laser

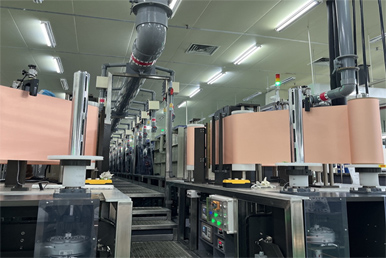

Copper plating

A process of metal electrodeposition on the holes drilled for electrical connection between layers after the drilling process

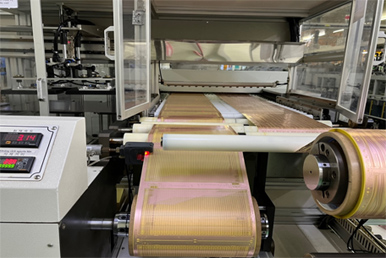

Pattern

A formation of circuits for products through D/F coating - exposure - development - etching - desquamation

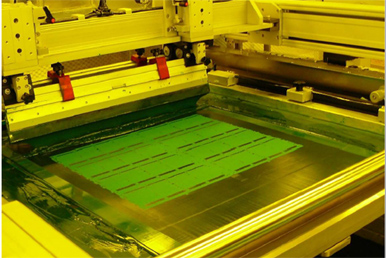

Solder Resist

Protection of product circuit using cover lay and PSR ink

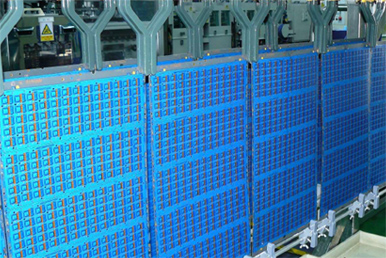

Surface Treatment

Plating process for ease of SMT and anti-oxidation

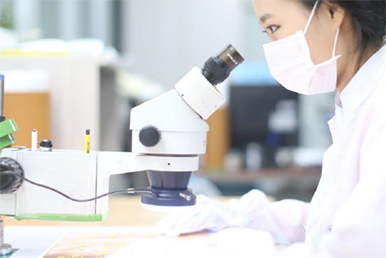

Attaching Stiffener and Inspection

Enhancement of durability and quality inspection using SUS, PI, FR4, and Stiffer
